Kolga Model A360
Top Opening High Performance
Low Background Lead Shield

Kolga A360

The Kolga Model A360 is a 102 mm (4 inch) high performance copper/tin-lined lead shield for germanium detectors. The 102 mm bulk shield is made from certified DOERun virgin lead.

•  Overall: Height 91.4 cm (36.0 in.) Width 77.5 cm (30.5 in.)<
•  Cavity: Diameter 17.78 cm (7.0 in.) Depth 16.5 (6.5 in.)
•  Outer Jacket: 6.35 mm (0.25 in.) Stainless Steel.
•  Shield: 4.5 cm (2 in.) thick certified low background lead.
•  Graded Lining: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper.
•  Weight: 243.4 Kg (536 lbs.)
•  Satin Finish Stainless Steel

View/Download Product Spec Sheet (pdf))

Kolga Model A300-M
Modular 10 cm
High Performance Shield

Kolga A300-M

The Kolga Model A300–M is a modular 10 cm (4 inch) high performance copper/tin-lined lead shield for germanium detectors. The 10 cm modular bulk shield is made from certified DOE Run virgin lead.

•  Overall: Height 48.14 cm (18.9 in.) Width 37.1 cm (14.6 in.)
•  Cavity: Diameter 15.4 cm (6 in.) Depth 25.4 (10.0 in.)
•  Outer Jacket – 6.35 mm (0.25 in.) Stainless Steel
•  Shield – 10 cm modular DOERUN Certified low background lead with no piece larger than 28 kg.
•  Graded Lining – 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper.
•  Weight 486 Kg (1070 lbs.)
•  Satin Finish Stainless Steel

View/Download Spec Sheet (pdf)

Kolga Model A350
Top Opening High Performance
Low Background Lead Shield

Kolga A350

The Kolga Model A350 is a 102 mm (4 inch) high performance copper/tin-lined lead shield for germanium detectors. The 102 mm bulk shield is made from certified DOE Run virgin lead.

•  Overall: Height 63.42 cm (24.97 in.) Width 50.8 cm (20.0 in.)
•  Cavity: Diameter 27.94 cm (11 in.) Depth 40.64 cm (16 in.)
•  Outer Jacket:9.5 mm (3/8 in.) low carbon steel
•  Shield: 10 cm (4 in.) thick DOERUN certified low background lead
•  Graded Lining: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper
•  Weight: 1113 Kg (2448 lbs.)
•  Finish: Light Gray Epoxy Paint

View/Download Product Spec Sheet (pdf)

Kolga Model A304
High Performance Low Background
Lead Food Monitor Shield

Kolga A304

The Kolga Model A304 is a 4.5 cm (2 inch) high performance copper/tin graded liner lead shield for NaI detectors. The 4.5 cm bulk shield is made from certified DOE Run virgin lead.

•  Overall: Height 91.4 cm (36.0 in.) Width 77.5 cm (30.5 in.)
•  Cavity: Diameter 17.78 cm (7.0 in.) Depth 16.5 (6.5 in.)
•  Outer Jacket: 6.35 mm (0.25 in.) Stainless Steel.
•  Shield: 4.5 cm (2 in.) thick certified low background lead.
•  Graded Lining: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper.
•  Weight: 243.4 Kg (536 lbs.)
•  Satin Finish Stainless Steel

View/Download Product Spec Sheet (pdf)

Kolga Model A310-TT
Lightweight Top Opening
Low Background Lead Shield

Kolga A310-TT

The Kolga Model A310-TT is a 12.7 mm (0.5 inch) high performance copper/tin-lined lead shield for NaI detectors. The 12.7 mm bulk shield is made from certified DOE Run virgin lead.

•  Overall: Height 53.34 cm (21 in.) Width 30.5 cm (12 in.)
•  Cavity: Diameter 14.7 cm (5.78 in.) Depth 22.1 cm (9 in.)
•  Outer Jacket: 6.35 mm (0.25 in.) Aluminum.
•  Shield: 12.7 mm (0.5 in.) thick certified low background lead.
•  Graded Liner: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper.
•  Weight: Shield 30.9 Kg (68 lbs.)
•  Weight: Base 23.6 Kg (52 Lbs.)
•  Total Weight: 54.5 Kg (120 lbs.)
•  Exterior Finish: Black Anodized

View/Download Product Spec Sheet (pdf)

Kolga Model A320-1
One Liter Top Opening
High Performance Low Background
Lead Shield

Kolga A320-1

The Kolga Model A320-1 is a 50.8 mm (2 inch) thick high performance copper/tin-lined lead shield for NaI detectors. The 50.8 mm bulk shield is made from certified DOE Run virgin lead.

•  Overall: Height 57.9 cm (22.81 in.) Width 25.4 cm (10.0 in.)
•  Cavity: Diameter 11.4 cm (4.5 in.) Depth 143.2 (17.0 in.)
•  Outer Jacket: 6.35 mm (3/8 in.) thick low carbon steel.
•  Sample Depth: 25.7 cm (10.15 in.)
•  Shield: 5.08 cm (2 in.) thick certified low background lead.
•  Graded Lining: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper.
•  Weight: 199 Kg (437 lbs.)
•  Finish: Light Gray Epoxy Paint

View/Download Product Spec Sheet (pdf)

Kolga Model A320-2
Two Liter Top Opening
High Performance Low Background
Lead Shield

Kolga A320-2

The Kolga Model A320-2 is a 50.8 mm (2 inch) thick high performance copper/tin-lined lead shield for sodium iodide (NaI) detectors.

•  Overall: Height 68.4 cm (26.9 in.) Width 30.5 cm (12 in.)
•  Cavity: Diameter 15.24 cm (6 in.) Depth 53.3 (21 in.)
•  Outer Jacket: 6.35 mm (3/8 in.) thick low carbon steel.
•  Sample Depth: 32.4 cm (12.75 in.)
•  Shield: 5.08 cm (2 in.) thick certified low background lead.
•  Graded Lining: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper.
•  Weight: 335 Kg (726 lbs.)
•  Finish: Light Gray Epoxy Paint

View/Download Product Spec Sheet (pdf)

Kolga Model A340
Top Opening High Performance
Low Background Lead Shield

Kolga A340

The Kolga Model A340 is a 100 mm (4 in) high performance copper/tin-lined lead shield for germanium detectors. The 100 mm (4 in) bulk shield is made from certified DOE Run virgin lead.

•  Overall: Height 63.5 cm (25 in.) Width 50.8 cm (20.0 in.)
•  Cavity: Diameter 27.94 cm (11 in.) Depth 40.64 cm (16 in.)
•  Outer Jacket: 9.5 mm (3/8 in.) low carbon steel
•  Shield: 10 cm (4 in.) thick DOERUN certified low background lead
•  Graded Lining: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper
•  Weight: 1090 Kg (2400 lbs.)
•  Finish: Light Gray Epoxy Paint

View/Download Product Spec Sheet (pdf)

Kolga Model A380
Top Opening High Performance
Low Background Lead Shield

Kolga A380

The Kolga Model A380 is a 152 mm (6 inch) high performance copper/tin-lined lead shield for germanium detectors. The 152 mm bulk shield is made from certified DOE Run virgin lead.

•  Overall: Height 68.2 cm (26.9 in.) Diameter 55.8 cm (22.0 in.)
•  Cavity: Diameter 22.85 cm (9 in.) Depth 35.66 (14 in.)
•  Outer Jacket: 9.5 mm (3/8 in.) thick low carbon steel.
•  Shield: 15 cm (6 in.) thick DOERUN certified low background lead.
•  Graded Lining: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper.
•  Weight: 1625 Kg (3575 lbs.)
•  Finish: Light Gray Epoxy Paint

View/Download Product Spec Sheet (pdf)

Kolga Model A380-J
Top Opening High Performance
Low Background Lead Shield

Kolga A380-J

The Kolga Model A380-J is a 152.4mm (6 inch) high performance low background copper/tinlined lead shield for germanium detectors. The 152.4 mm bulk shield is made from certified DOE Run virgin low background lead (25 Bq/kg).

•  Overall: Height 68.6 cm (27 in.) Diameter 55.8 cm (22.0 in.)
•  Cavity: Diameter 22.85 cm (9 in.) Depth 35.66 (14 in.)
•  Outer Jacket: 9.5 mm (3/8 in.) thick low carbon steel.
•  Shield: 15 cm (6 in.) thick DOERUN certified low background lead.
•  Graded Lining: 1 mm (0.040 in.) tin and 1.5 mm (0.06 in.) oxygen free copper.
•  Weight: 1818 Kg (4000 lbs.)
•  Finish: Light Gray Epoxy Paint

Download/View Product Spec Sheet (pdf)

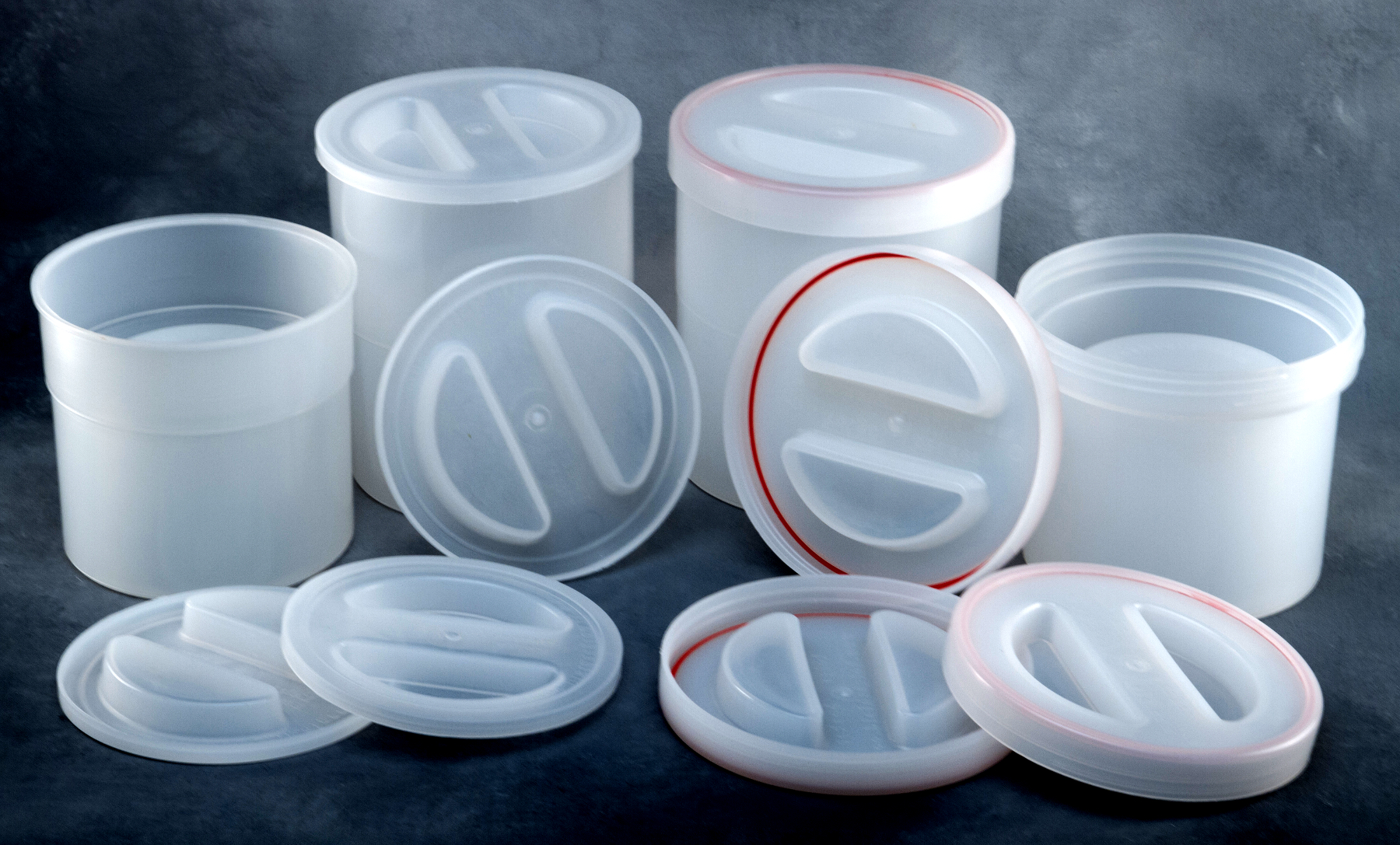

Kolga
Marinelli
Beakers

The patented Kolga Marinelli beakers are available in many different sizes with two lid types available: the screw-on style or the traditional snap-on style.

The Kolga beakers have a unique patented tight fitting lid to prevent spillage with a built-in gripping handle to facilitate easy removal of the beaker from the sample counting shield.

Both lid versions have been tested for air tightness at least 1 psi positive pressure for 24 hours.

The Screw Top versions have a built in sealing ring to assure leak proof operation for sensitive applications.

The Marinelli form factor improves counting efficiency in gamma counting systems.

The KB Model beakers are available for up to 3.5 inch detectors. Please see our specifications sheet for details and the correct part number for your application.

Download/View Kolga Marinelli Beaker Spec Sheet (pdf)
